Sample Shop Drawings

A complete fire alarm shop drawing package for a basic sprinkler monitoring system — including device layout, riser diagram, panel schedule, and battery calculations. Ideal for small commercial occupancies requiring NFPA 72-compliant monitoring.

Sample fire alarm shop drawings for mercantile occupancies (retail stores, shopping centers). Includes device layout, notification appliance circuits, riser diagram, and AHJ-ready documentation per NFPA 72 and IBC requirements.

Engineer-stamped fire alarm shop drawings for assembly occupancies — churches, auditoriums, event venues, and similar facilities. Demonstrates our approach to high-occupancy notification design and code compliance.

Sample fire alarm shop drawings for multi-family residential (R-2) occupancies including apartment complexes and condominiums. Covers unit-level detection, corridor notification, and common area systems per NFPA 72.

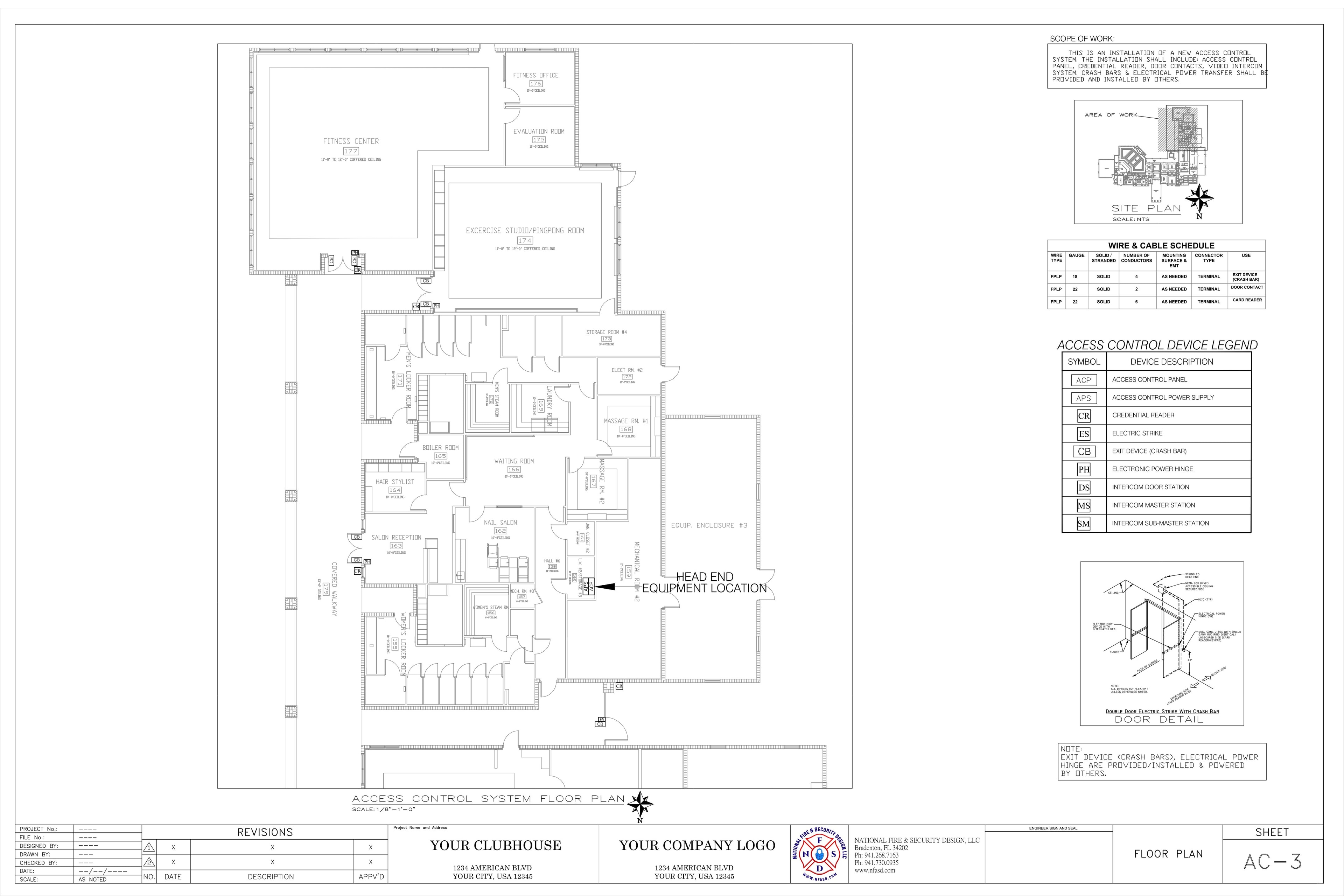

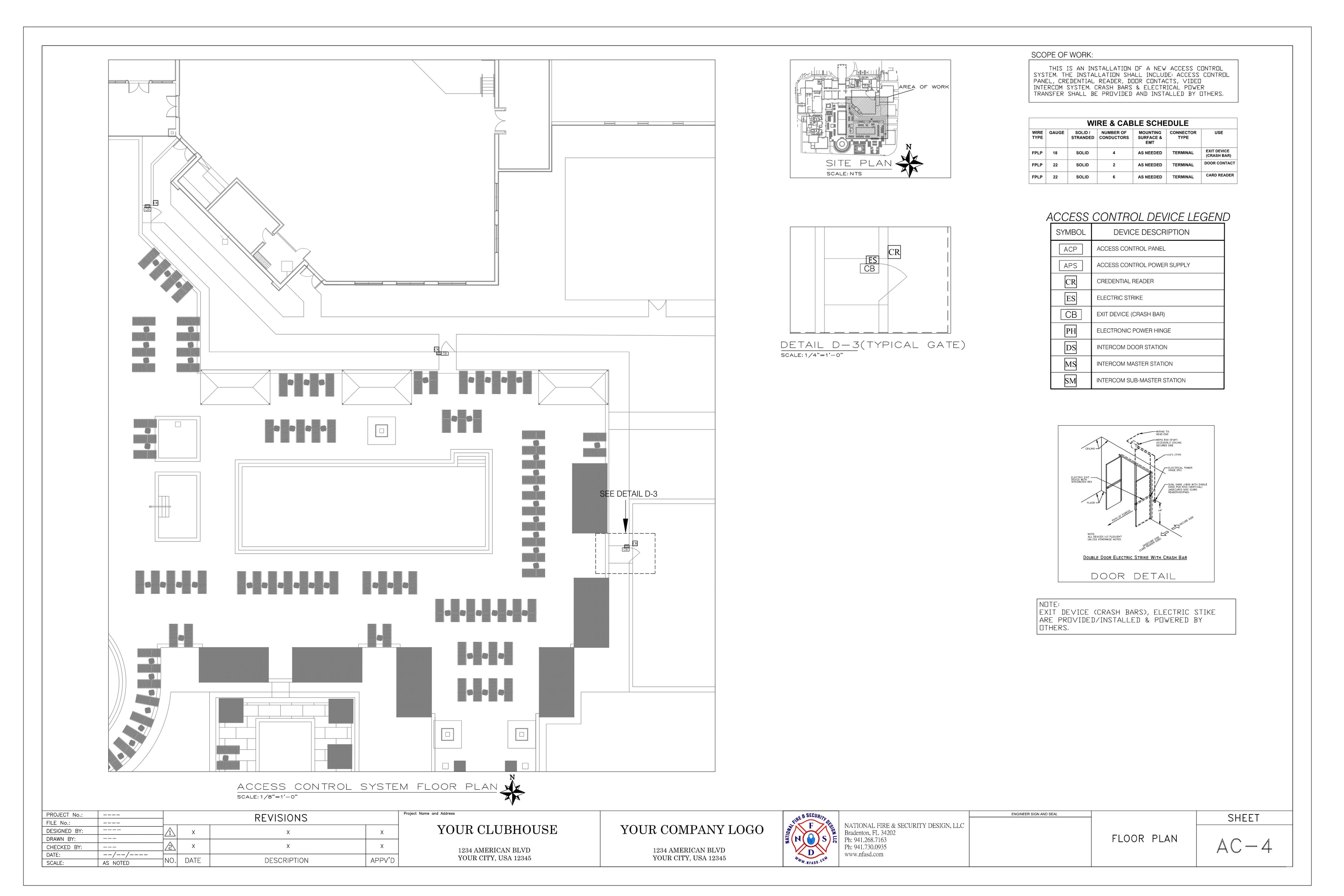

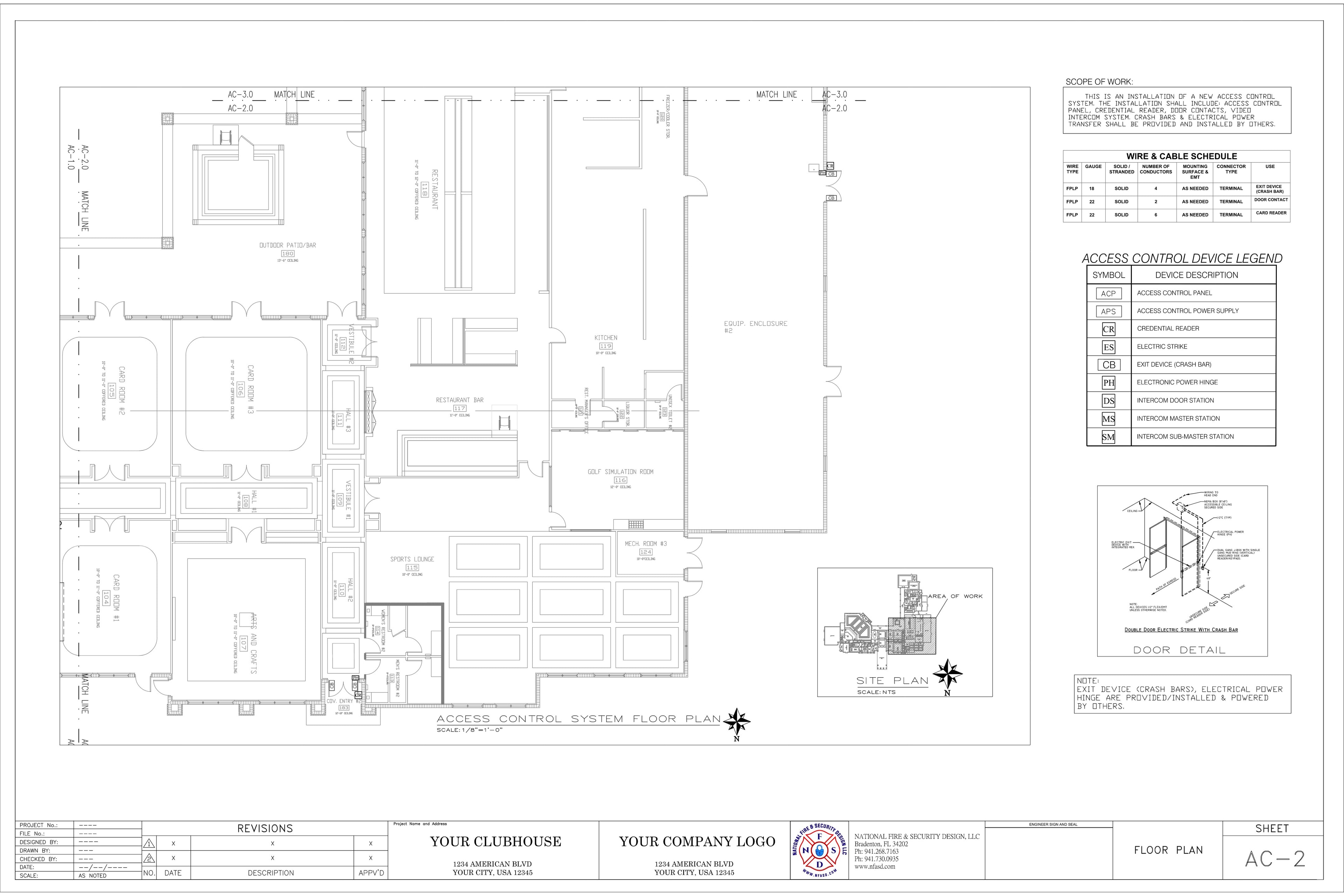

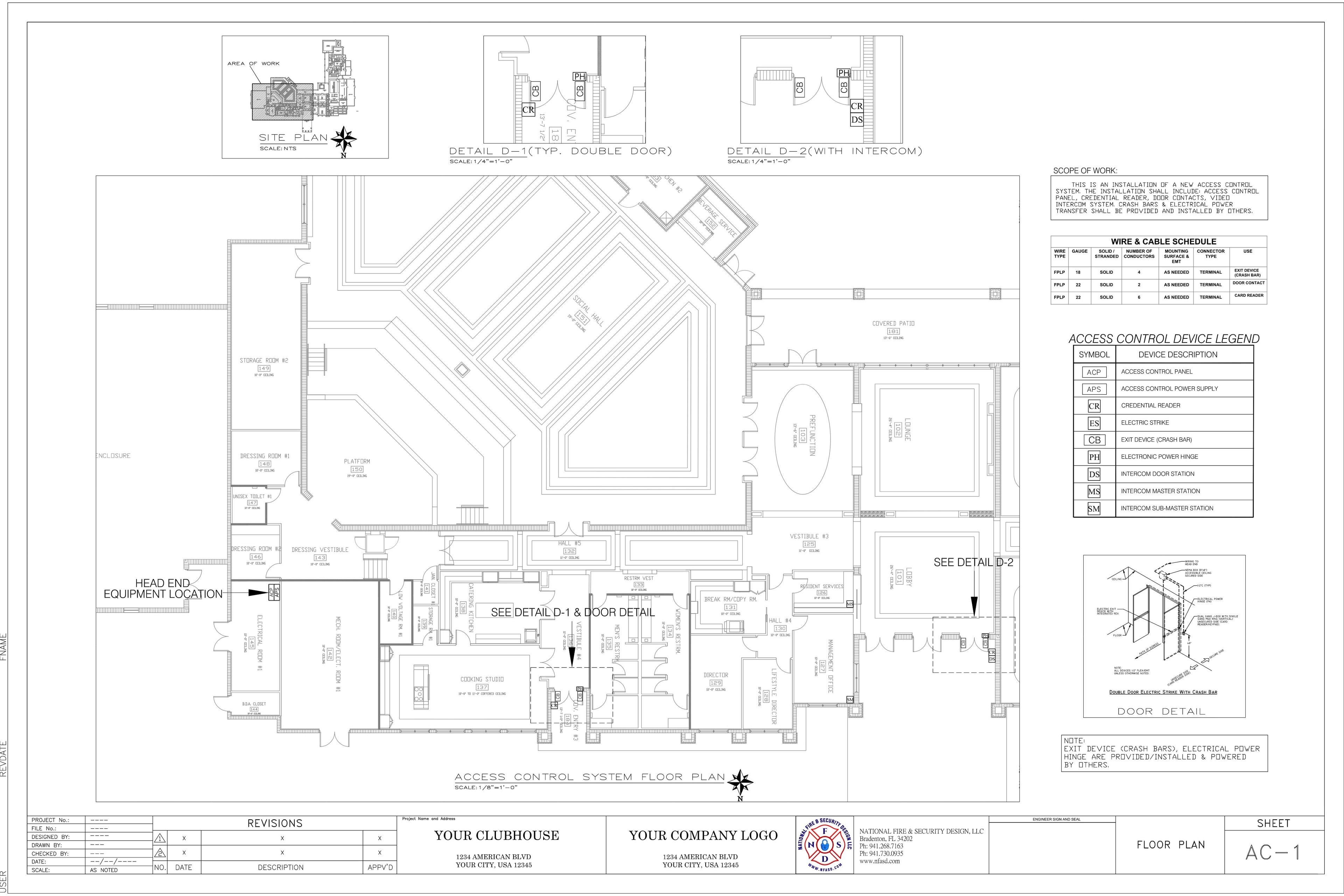

Sample security and access control shop drawings including door hardware schedules, card reader layouts, camera placement, and system riser diagrams. Designed to meet AHJ submittal requirements.

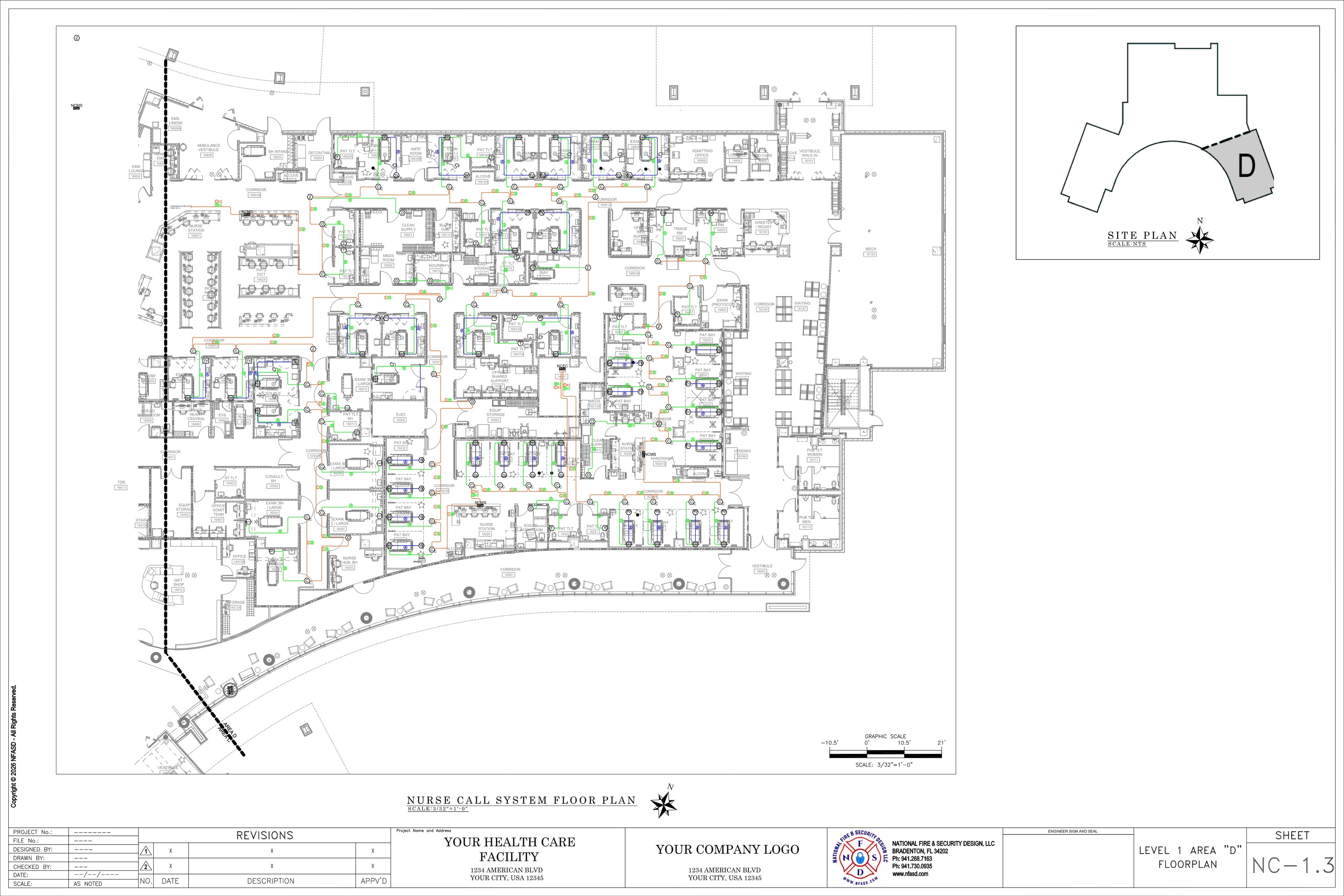

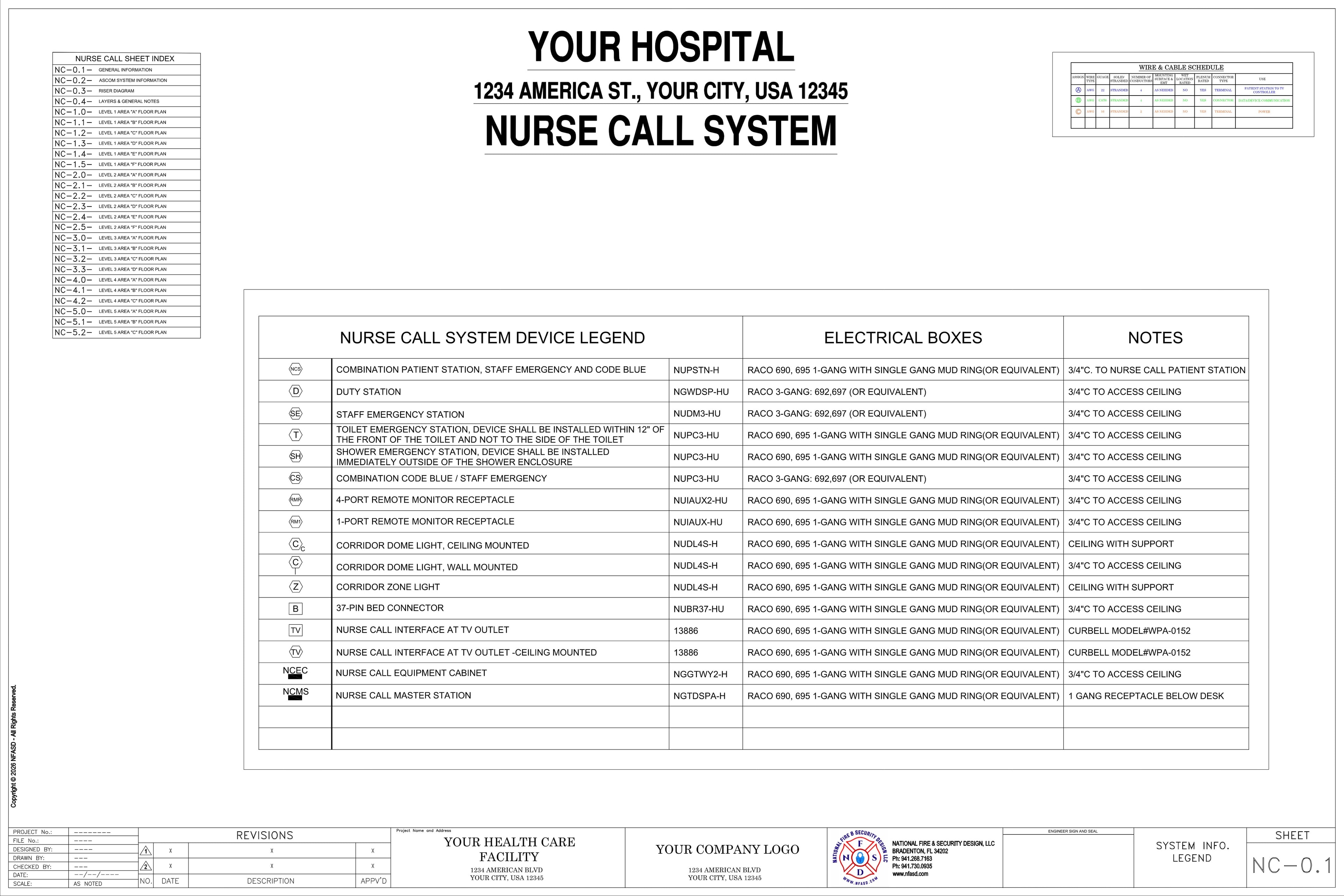

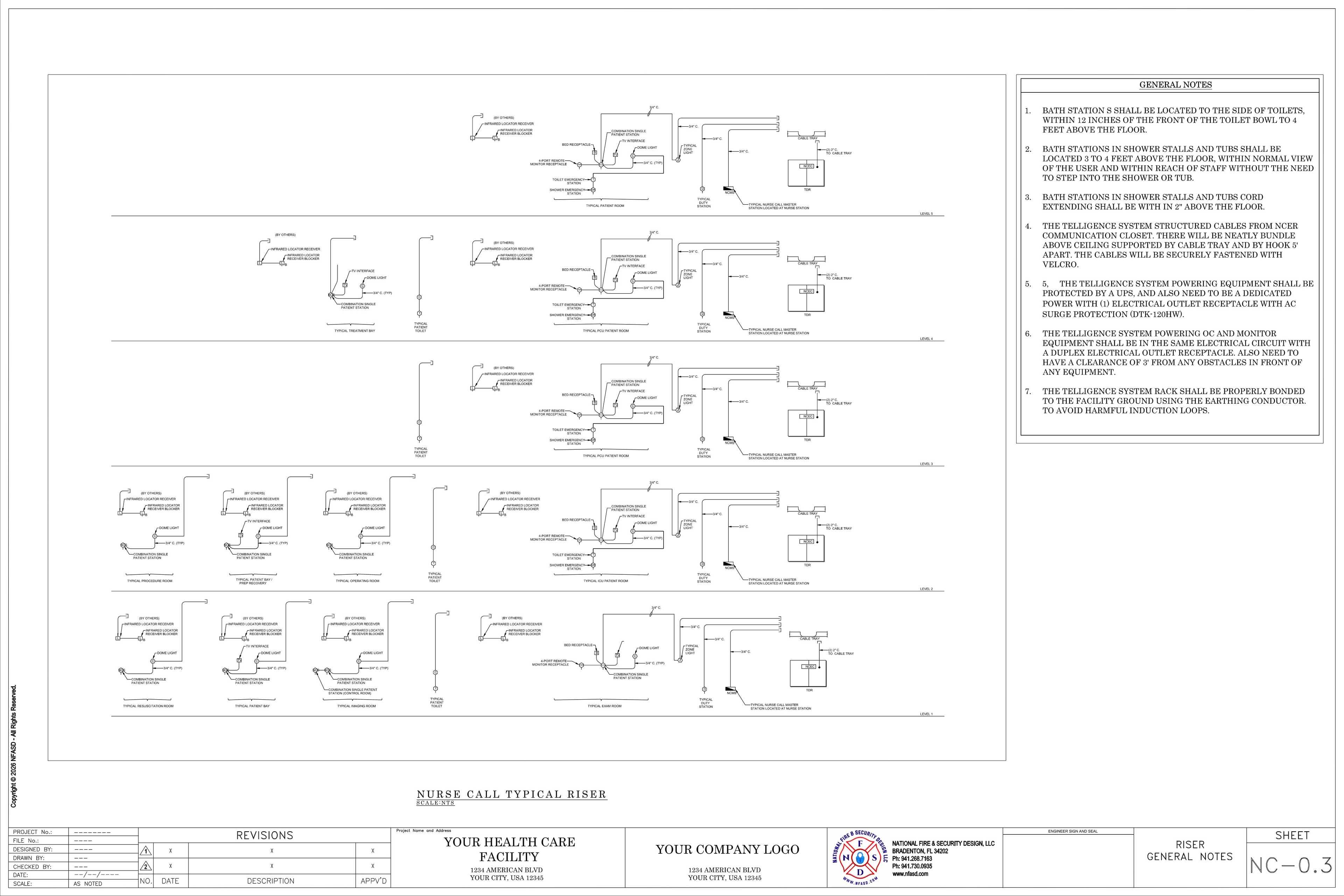

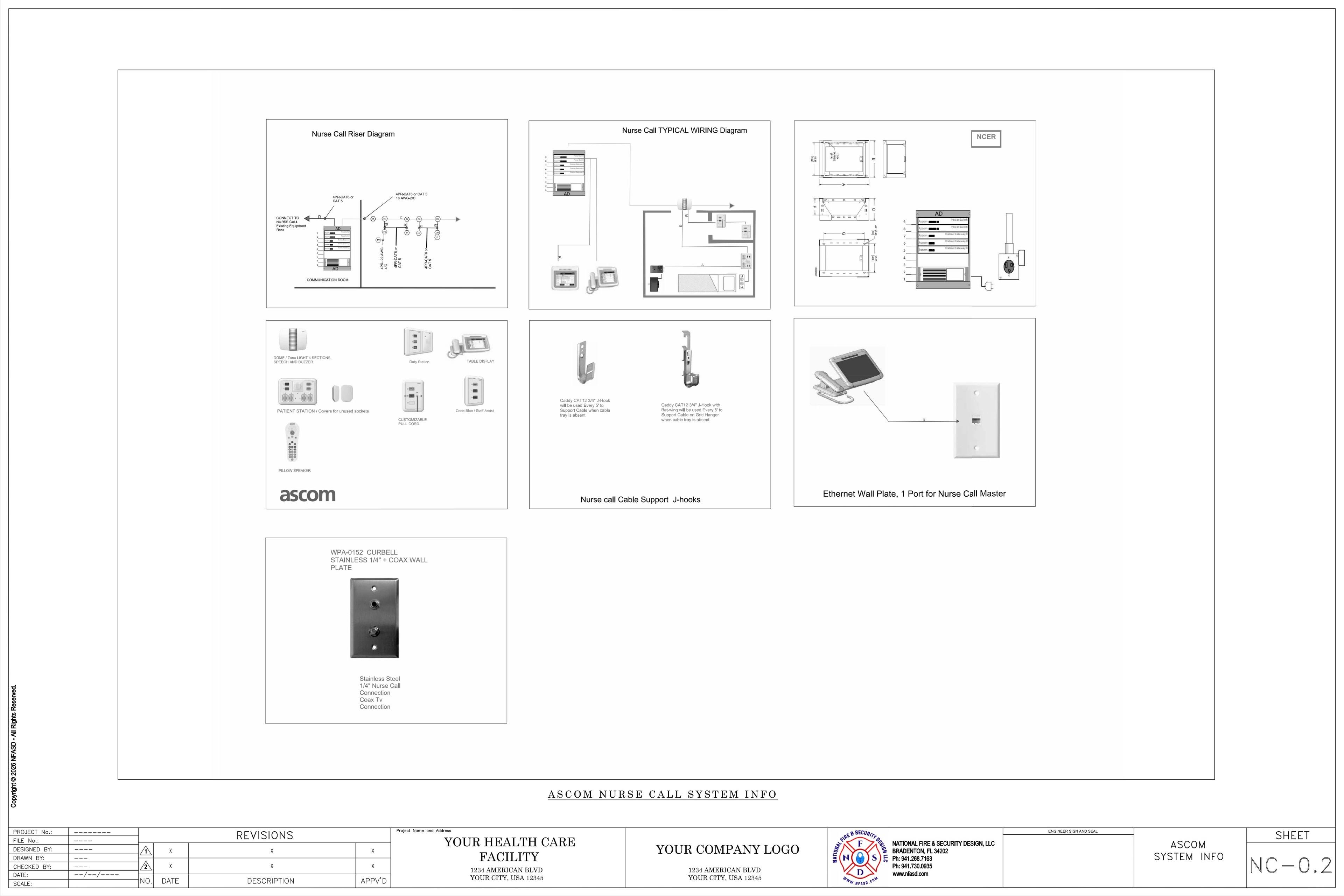

Sample nurse call system shop drawings for healthcare and assisted living facilities. Includes room station layouts, master station placement, corridor dome light schedules, and system riser diagrams.

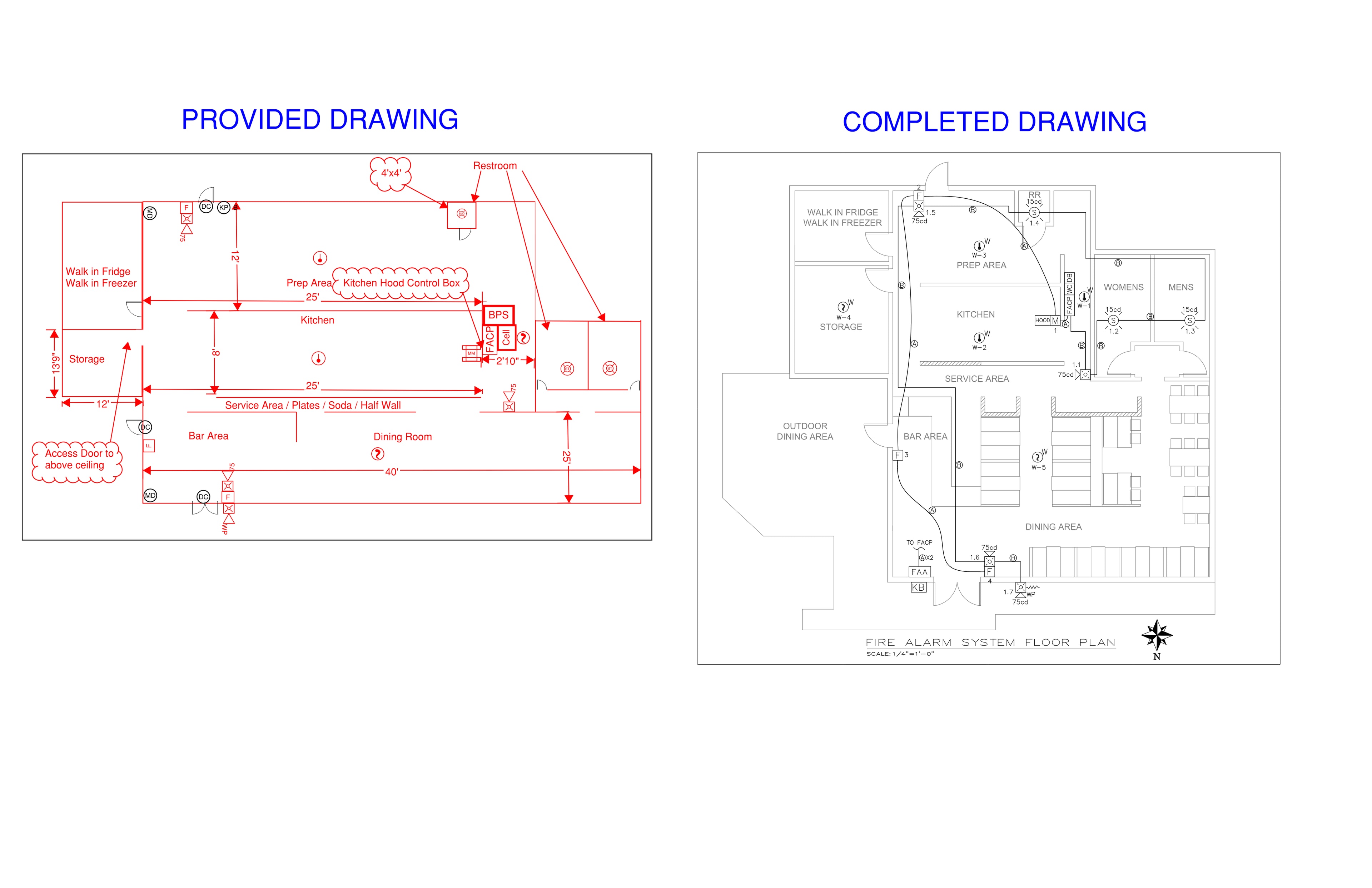

Sample floorplan reconstruction drawings produced from field measurements, photos, or redlined sketches. Demonstrates our ability to produce accurate, to-scale CAD floorplans for use in permit submittals.
